Kind: Subsystem

Class: Vehicle

Type: System

Commercial Vehicle OBE

Overview

The Commercial Vehicle On-Board Equipment (OBE) resides in a commercial vehicle and provides the sensory, processing, storage, and communications functions necessary to support safe and efficient commercial vehicle operations. It provides two-way communications between the commercial vehicle drivers, their fleet managers, attached freight equipment, and roadside officials. A separate 'Vehicle OBE' physical object supports vehicle safety and driver information capabilities that apply to all vehicles, including commercial vehicles. The Commercial Vehicle OBE supplements these general ITS capabilities with capabilities that are specific to commercial vehicles.



This physical object is included in the following Service Packages:

Triples

Source Flow Destination
Basic Commercial Vehicle host commercial vehicle status Commercial Vehicle OBE
Border Inspection System border pass/pull-in Commercial Vehicle OBE
Border Inspection System clearance notification Commercial Vehicle OBE
Border Inspection System request tag data Commercial Vehicle OBE
Commercial Vehicle Administration Center safety inspection record Commercial Vehicle OBE
Commercial Vehicle Administration Center trigger area notification Commercial Vehicle OBE
Commercial Vehicle Check Equipment border clearance data request Commercial Vehicle OBE
Commercial Vehicle Check Equipment border clearance event Commercial Vehicle OBE
Commercial Vehicle Check Equipment border pass/pull-in Commercial Vehicle OBE
Commercial Vehicle Check Equipment clearance notification Commercial Vehicle OBE
Commercial Vehicle Check Equipment electronic lock data request Commercial Vehicle OBE
Commercial Vehicle Check Equipment electronic screening request Commercial Vehicle OBE
Commercial Vehicle Check Equipment pass/pull-in Commercial Vehicle OBE
Commercial Vehicle Check Equipment request tag data Commercial Vehicle OBE
Commercial Vehicle Check Equipment safety inspection record Commercial Vehicle OBE
Commercial Vehicle Check Equipment safety inspection request Commercial Vehicle OBE
Commercial Vehicle Check Equipment screening event record Commercial Vehicle OBE
Commercial Vehicle Check Equipment trigger area notification Commercial Vehicle OBE
Commercial Vehicle Driver alert response Commercial Vehicle OBE
Commercial Vehicle Driver combination declarations Commercial Vehicle OBE
Commercial Vehicle Driver cv driver input Commercial Vehicle OBE
Commercial Vehicle Driver driver identity characteristics Commercial Vehicle OBE
Commercial Vehicle Driver mass declarations Commercial Vehicle OBE
Commercial Vehicle Driver trigger mass data Commercial Vehicle OBE
Commercial Vehicle Driver work and rest declarations Commercial Vehicle OBE
Commercial Vehicle OBE safe vehicle disable Basic Commercial Vehicle
Commercial Vehicle OBE tag data Border Inspection System
Commercial Vehicle OBE driver log Commercial Vehicle Administration Center
Commercial Vehicle OBE on-board safety data Commercial Vehicle Administration Center
Commercial Vehicle OBE unique identifiers Commercial Vehicle Administration Center
Commercial Vehicle OBE border clearance data Commercial Vehicle Check Equipment
Commercial Vehicle OBE commercial vehicle disable status Commercial Vehicle Check Equipment
Commercial Vehicle OBE commercial vehicle identities Commercial Vehicle Check Equipment
Commercial Vehicle OBE container seal status Commercial Vehicle Check Equipment
Commercial Vehicle OBE driver log Commercial Vehicle Check Equipment
Commercial Vehicle OBE electronic lock data Commercial Vehicle Check Equipment
Commercial Vehicle OBE expected driver identity characteristics Commercial Vehicle Check Equipment
Commercial Vehicle OBE freight equipment information Commercial Vehicle Check Equipment
Commercial Vehicle OBE on-board safety data Commercial Vehicle Check Equipment
Commercial Vehicle OBE safety inspection record Commercial Vehicle Check Equipment
Commercial Vehicle OBE screening event record Commercial Vehicle Check Equipment
Commercial Vehicle OBE tag data Commercial Vehicle Check Equipment
Commercial Vehicle OBE unique identifiers Commercial Vehicle Check Equipment
Commercial Vehicle OBE alerts Commercial Vehicle Driver
Commercial Vehicle OBE commercial vehicle driver updates Commercial Vehicle Driver
Commercial Vehicle OBE commercial vehicle status Commercial Vehicle Driver
Commercial Vehicle OBE cv driver information presentation Commercial Vehicle Driver
Commercial Vehicle OBE cv driver safety alert Commercial Vehicle Driver
Commercial Vehicle OBE CVO pass/pull-in message Commercial Vehicle Driver
Commercial Vehicle OBE driver operations feedback Commercial Vehicle Driver
Commercial Vehicle OBE intermodal dispatch info Commercial Vehicle Driver
Commercial Vehicle OBE trip log information Commercial Vehicle Driver
Commercial Vehicle OBE combination data Commercial Vehicle Service Provider Center
Commercial Vehicle OBE combination declarations Commercial Vehicle Service Provider Center
Commercial Vehicle OBE driver log Commercial Vehicle Service Provider Center
Commercial Vehicle OBE mass data Commercial Vehicle Service Provider Center
Commercial Vehicle OBE mass declarations Commercial Vehicle Service Provider Center
Commercial Vehicle OBE on-board vehicle data Commercial Vehicle Service Provider Center
Commercial Vehicle OBE speed data Commercial Vehicle Service Provider Center
Commercial Vehicle OBE local signal priority request Connected Vehicle Roadside Equipment
Commercial Vehicle OBE vehicle location and motion Connected Vehicle Roadside Equipment
Commercial Vehicle OBE commercial vehicle location data Emergency Management Center
Commercial Vehicle OBE hazmat notification Emergency Management Center
Commercial Vehicle OBE hazmat notification Emergency Vehicle OBE
Commercial Vehicle OBE commercial vehicle breach Fleet and Freight Management Center
Commercial Vehicle OBE commercial vehicle identities Fleet and Freight Management Center
Commercial Vehicle OBE commercial vehicle location data Fleet and Freight Management Center
Commercial Vehicle OBE cv driver safety status Fleet and Freight Management Center
Commercial Vehicle OBE driver alert response Fleet and Freight Management Center
Commercial Vehicle OBE driver log Fleet and Freight Management Center
Commercial Vehicle OBE driver to fleet request Fleet and Freight Management Center
Commercial Vehicle OBE freight equipment information Fleet and Freight Management Center
Commercial Vehicle OBE hazmat notification Fleet and Freight Management Center
Commercial Vehicle OBE on-board safety data Fleet and Freight Management Center
Commercial Vehicle OBE on-board vehicle data Fleet and Freight Management Center
Commercial Vehicle OBE route deviation alert Fleet and Freight Management Center
Commercial Vehicle OBE transport order status Fleet and Freight Management Center
Commercial Vehicle OBE trip log Fleet and Freight Management Center
Commercial Vehicle OBE vehicle environmental data Fleet and Freight Management Center
Commercial Vehicle OBE freight delivery status Intermodal Customer System
Commercial Vehicle OBE commercial vehicle identities Intermodal Terminal
Commercial Vehicle OBE container transfer location request Intermodal Terminal
Commercial Vehicle OBE commercial vehicle identities Parking Area Equipment
Commercial Vehicle OBE commercial vehicle parking arrival/departure times Parking Area Equipment
Commercial Vehicle OBE rest area parking request Parking Area Equipment
Commercial Vehicle OBE cv trip request Transportation Information Center
Commercial Vehicle OBE freight traveler information preferences Transportation Information Center
Commercial Vehicle OBE special vehicle alert Vehicle OBE
Connected Vehicle Roadside Equipment intersection geometry Commercial Vehicle OBE
Connected Vehicle Roadside Equipment intersection status Commercial Vehicle OBE
Connected Vehicle Roadside Equipment signal priority status Commercial Vehicle OBE
Driver Identification Card cv driver credential Commercial Vehicle OBE
Fleet and Freight Management Center commercial vehicle disable Commercial Vehicle OBE
Fleet and Freight Management Center container transport assignment Commercial Vehicle OBE
Fleet and Freight Management Center driver log Commercial Vehicle OBE
Fleet and Freight Management Center expected driver identity characteristics Commercial Vehicle OBE
Fleet and Freight Management Center fleet to driver update Commercial Vehicle OBE
Fleet and Freight Management Center hazmat information Commercial Vehicle OBE
Fleet and Freight Management Center road weather advisories Commercial Vehicle OBE
Fleet and Freight Management Center route deviation alert Commercial Vehicle OBE
Fleet and Freight Management Center safety inspection record Commercial Vehicle OBE
Fleet and Freight Management Center trigger area Commercial Vehicle OBE
Fleet and Freight Management Center trigger area notification Commercial Vehicle OBE
Fleet and Freight Management Center trip identification number Commercial Vehicle OBE
Freight Equipment container seal status Commercial Vehicle OBE
Freight Equipment freight equipment information Commercial Vehicle OBE
Intermodal Customer System trip identification number Commercial Vehicle OBE
Intermodal Terminal container transfer location Commercial Vehicle OBE
Location and Time Data Source location and time Commercial Vehicle OBE
On-Board Weight Monitoring Equipment combination data Commercial Vehicle OBE
On-Board Weight Monitoring Equipment mass data Commercial Vehicle OBE
Parking Area Equipment rest area parking information Commercial Vehicle OBE
Transportation Information Center freight-specific traveler information Commercial Vehicle OBE
Transportation Information Center intersection status Commercial Vehicle OBE
Transportation Information Center parking availability Commercial Vehicle OBE
Transportation Information Center parking plan Commercial Vehicle OBE

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 5 High High High Carrier Operations and Fleet Management
Class 5 High High High Fleet and Freight Security
Class 5 High High High HAZMAT Management
Class 5 Moderate High High Incident Scene Pre-Arrival Staging Guidance for Emergency Responders
Class 5 Moderate High High Vehicle Emergency Response
Class 4 High High Moderate Commercial Vehicle Parking
Class 4 High High Moderate CV Driver Security Authentication
Class 4 High High Moderate Electronic Clearance
Class 4 High High Moderate Electronic Work Diaries
Class 4 High High Moderate Freight Administration
Class 4 High High Moderate Freight Drayage Optimization
Class 4 High High Moderate Freight Signal Priority
Class 4 High High Moderate Freight-Specific Dynamic Travel Planning
Class 4 High High Moderate Roadside CVO Safety
Class 4 High High Moderate Smart Roadside and Virtual WIM
Class 3 Not Applicable High Moderate V2V Special Vehicle Alert
Class 2 Moderate Moderate Moderate Intelligent Access Program
Class 2 Moderate Moderate Moderate Intelligent Access Program - Weight Monitoring
Class 2 Moderate Moderate Moderate Intelligent Speed Compliance
Class 2 Moderate Moderate Moderate International Border Electronic Clearance
Class 1 Low Moderate Moderate Road Weather Information for Freight Carriers
Class 1 Low Low Moderate Roadside HAZMAT Security Detection and Mitigation



This interaces diagram had many interfaces and so was broken up into a Subsystem and Terminator interfaces diagram.

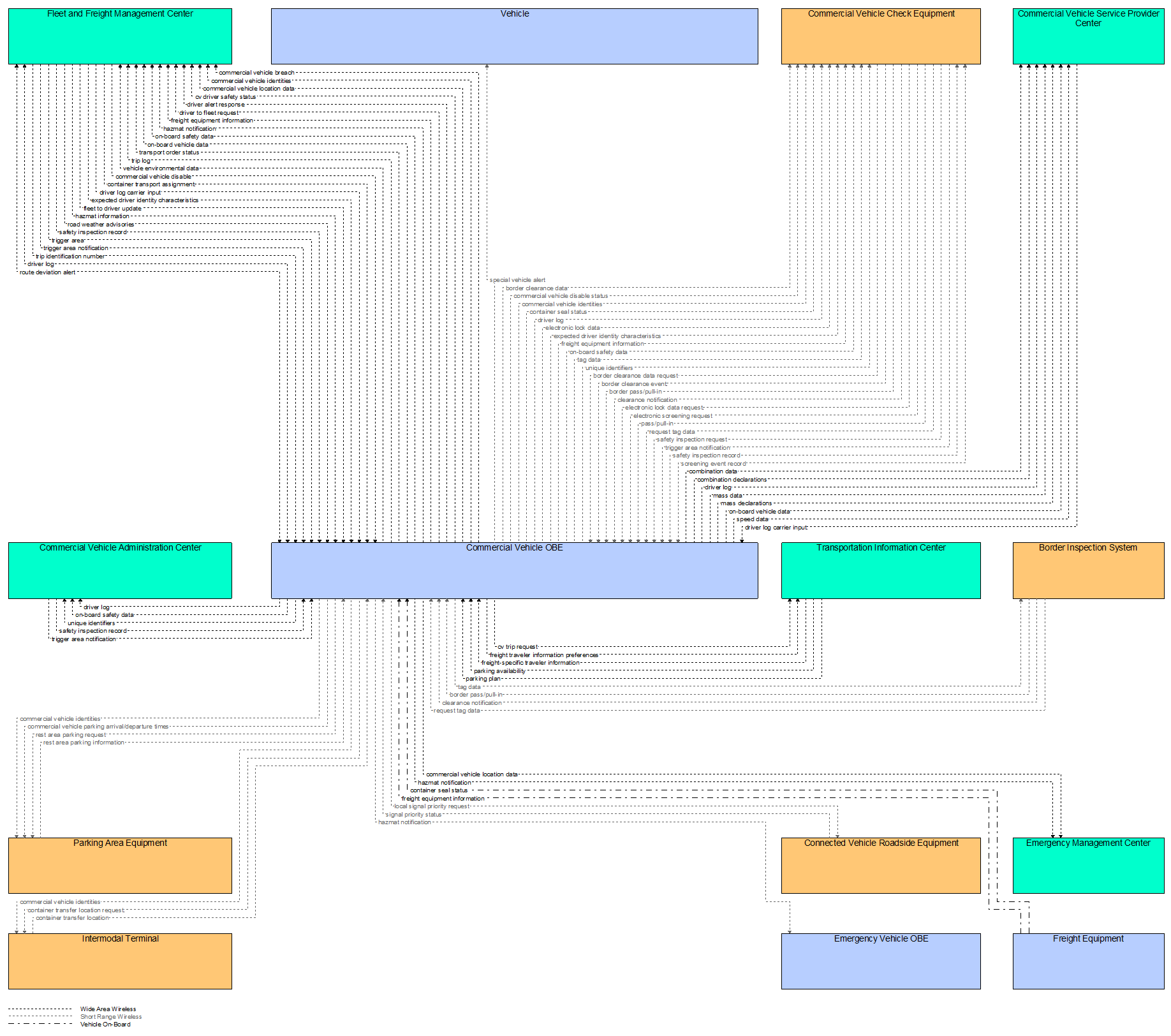

Subsystem Interfaces Diagram

Interfaces diagram


Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
